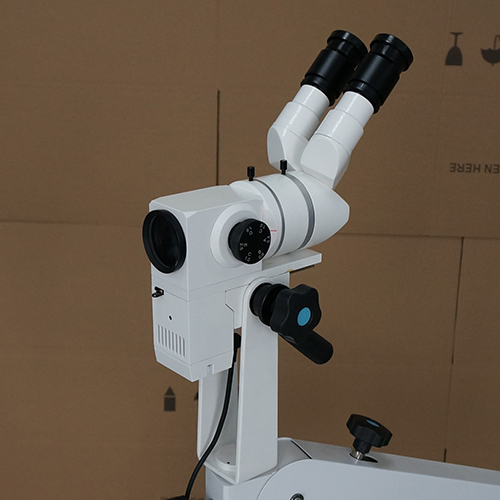

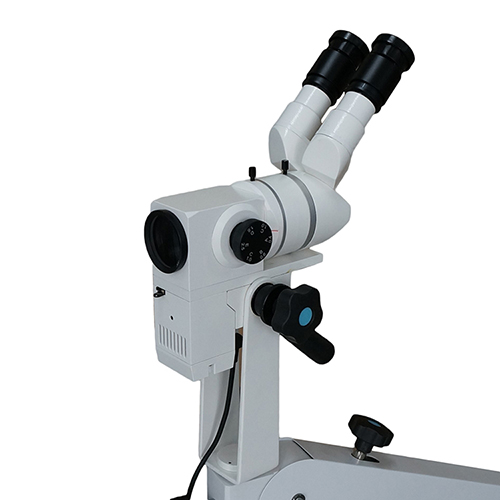

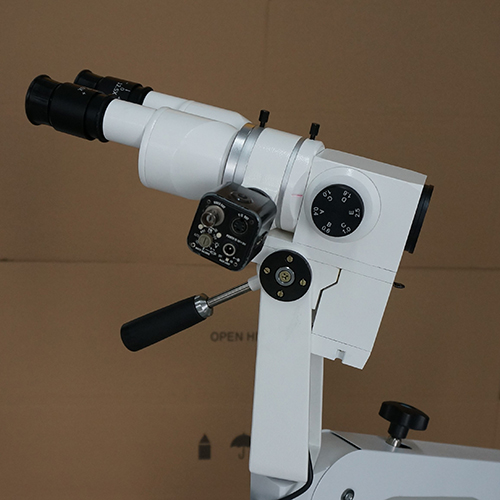

MICROSCOPE

Binoculars

 Straight f’=160 mm

Objective

  f’=300 mm

Eyepiece

12.5x, high-eyepoint, wide angular, pupil exit distance 21mm

Diopter adjustment

-5D to + 5D

Magnification changer

5 steps: 0.4x, 0.6x, 1x, 1.6x, 2.5x

Total magnifications

2.8x,4x,7x,11.5x, 17x

Visual field

80 mm-12.5 mm

Interpupillary distance

55 mm to 75 mm

Focusing

Micro-range of 40mm Manual

Working distance

295 mm

ILLUMINATION

Type

Coaxial illumination by optical light-guide system

Cold light source

LED lamp, 3V/10W

Illumination control

3steps

Field of illumination

65 mm

Power supply

AC 90V-240V

Light intensity

30000 LUX

Filter

Green

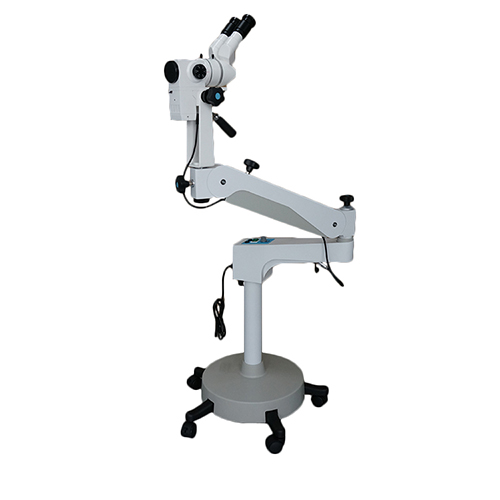

ARM, STAND

Type

 Pantographic arm, floor stand 1040mm

Rotation angle

270°

Elevation stroke

350 mm

Height

1000-1350 mm

Base size

600mm

Weight

38kgs

  ACCESSORIES

Binoculars

      45° inclined binoculars f’=125 mm

Objective

f’=250mm,400mm

Beam splitter

Dismountable

Adaptor for CCD

With iris diaphragm, f’=65 mm

NOTE:Specifications subject to change without notice
