MICROSCOPE

  Binoculars

Straight

 f’=160 mm

Objective

 f’=350 mm

Eyepiece

       12.5x, high-eyepoint, wide angular, pupil exit distance 21mm

Diopter adjustment

-5D to + 5D

Magnification changer

6 steps: 0.3x, 0.5x,0.8x 1.2x, 2.0x, 3.0x

Total magnifications

1.7x, 2.8x, 4.6x

6.8x,11.4x, 17x

Visual field

92 mm-14mm

Interpupillary distance

55mm to 75 mm

Working distance

350 mm

  ILLUMINATION

Type

Coaxial illumination by optical light-guide system

Cold light source

LED lamp, 3V/10W

Illumination control

continous

Field of illumination

65mm

Power supply

AC 90-240 V

Light intensity

25,000 LUX

Filter

Yellow,Green, blue

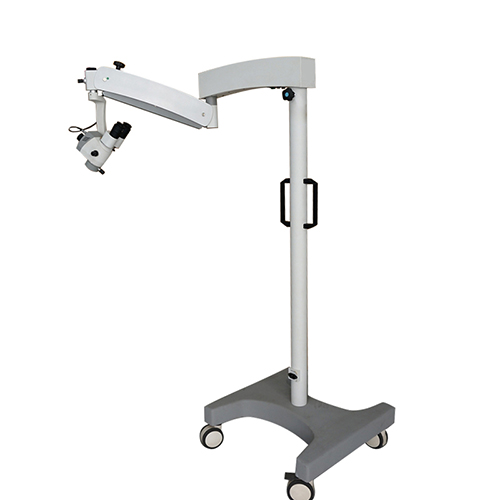

  ARM, STAND

Type

Pantographic arm, floor stand

Range

1250mm

Rotation angle

270°

Elevation stroke

400 mm

Base size

600 mm x 600 mm

Weight

90 KGS

  ACCESSORIES

Binoculars

0-180° binoculars f’=170mm

Beam splitter

Dismountable

Adaptor for CCD

With iris diaphragm, f’=65 mm

NOTE:Specifications subject to change without notice
